| Model | SMZ-171B | SMZ-171T |
| Optical system | Greenough | |
| Observation angle | 45°/ 60° | 45° |
| Magnification range (standard) | 0.75X–5X | |
| Zoom ratio | 1:6.7 | |
| Eyepiece | N-WF, high eye-point 10X(Ø23), Diopter adjustable interchangeable with biological eyepieces | |
| N-WF 12.5X(Ø18), 15X(Ø16), 20X(Ø13) optional | ||
| Interpupilary adjustment | 48mm-75mm | |
| Height of eye point | 405mm | |
| Working distance (standard) | 110mm | |
| Weight | 6.2 kg (head 1.4kg) | |
| C-Mount adapter | / | Trinocular head only |
| / | 0.5X, 0.65X, 1X adapters available | |
| Photo adapter | / | SY10 photo adapter 2.5X, 4X photo eyepiece available |
| Auxiliary ESD objectives |
0.3X [WD = 301mm], 0.5X [WD = 191.8mm], 0.63X [WD = 142.7mm], 0.75X [WD = 128.6mm], 1.5X [WD = 56.3mm ], 2.0X [WD = 38.6mm] |
|
| Max. working distance | 301mm | |
| Stand option | Stable pole stand / arm base stand and plain stand available 3W LED incident and transmitted light with reflector design Improved design for various boom stands for industrial use | |

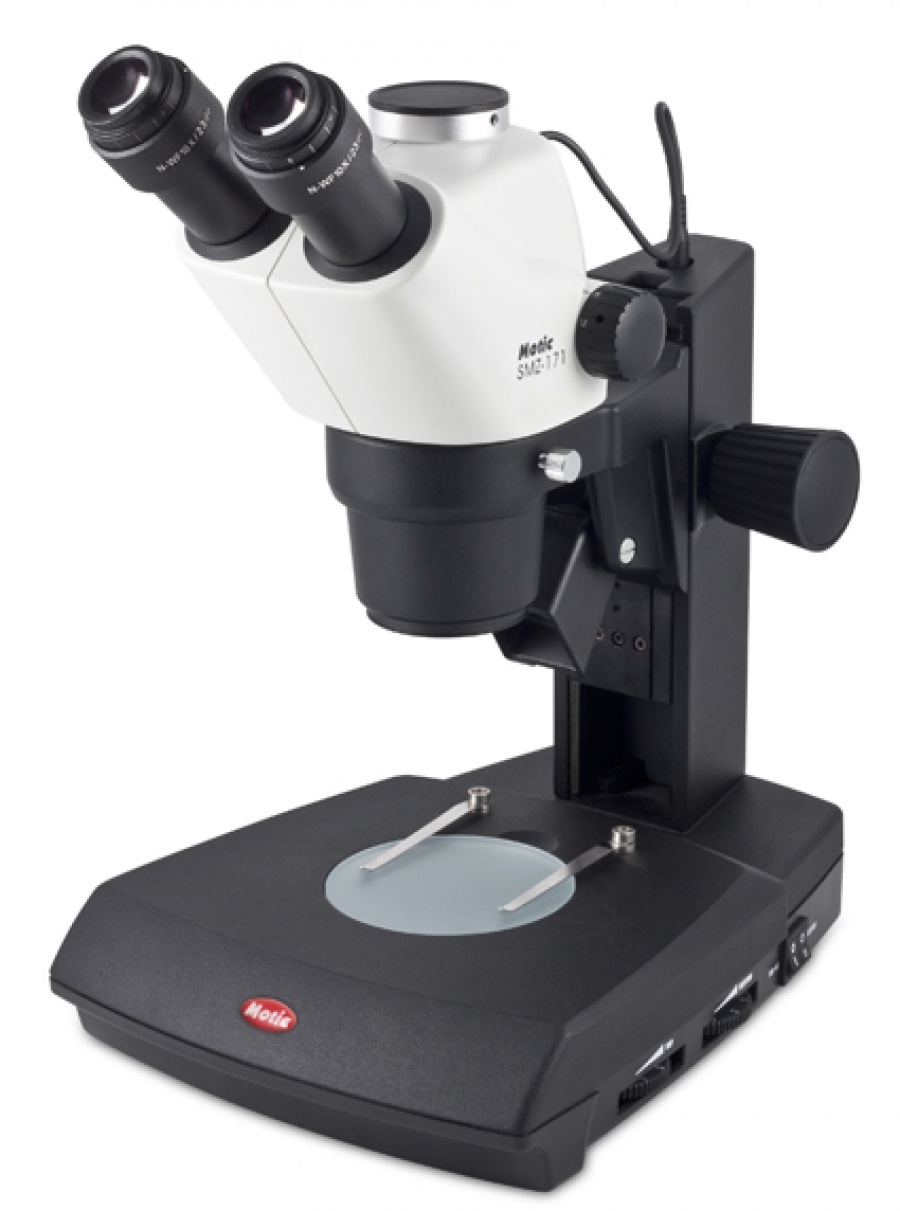

Motic SMZ171 Series
The Next Generation Stereo Microscope
ESD and non ESD version
New lead free optical design
Greenough optic system
Compact and rugged
Light weight
Anti fungus
Interlock eyepieces tube
LED stand
3W LED Transmitted Illumination
3W LED Incident Illumination
Switching power supply for use worldwide (100-240V)
Long lasting bulb, lamp life up to 25,000 hrs.
Outstanding price-performance ratio
